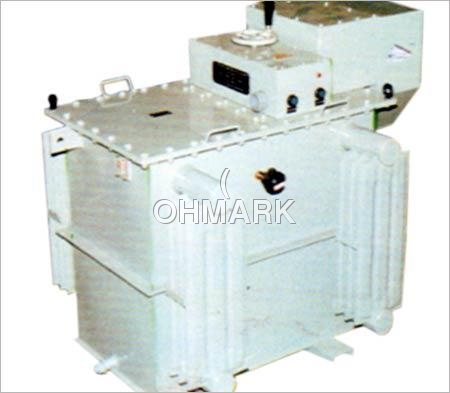

Liquid Rotor Starters

Get a Price/Quote

Liquid Rotor Starters Specification

Shape
Rectangular

Efficiency
Above 97%

Mounting Type
Floor Mounted

Humidity %
Up to 90% RH

Feature
Smooth Start, Improved Motor Life

Insulation Material
Class F Insulation

Surface Finish
Powder Coated

IP Rating
IP54

Operating Temperature
0C to 40C

Overheating Protection
YES

Power Factor
0.85

Product Type
Liquid Rotor Starter

Application
Heavy Duty Motor Starting

Protection Level
IP54

Frequency (MHz)
50 Hz

Rated Voltage
415 V

Energy Consumption
Low

Output Type
AC

Color
Grey

Dimension (L*W*H)
1700 x 700 x 1200 mm

Weight
850 kg

Size
Standard

Phase
Three Phase

Input Voltage
415 V

Material
Mild Steel

No Of Poles
6

About Liquid Rotor Starters

Liquid Rotor Starters

Backed by strong expertise and knowledge, we manufacture & present best Liquid Rotor Starters. These find application in various industrial and commercial sectors. Designed and manufactured to perfection, our offered assortment is widely renowned among our client due to its superlative features such as high operational fluency, long working life and rugged design. Manufactured as per requisite industrial norms, these Liquid Rotor Starters are available in the market at very cost effective prices.

Engineered for Heavy-Duty Industrial Use

This Liquid Rotor Starter is purpose-built for starting large, heavy-duty motors with minimal energy consumption and maximum smoothness. With a sturdy mild steel build and grey powder-coated finish, it stands up to the rigors of industrial environments while ensuring safety, performance, and longevity.

Optimized Electrical Performance

Operating at a voltage of 415 V and a power factor of 0.85, this starter supports three-phase AC outputs and offers over 97% efficiency. Its advanced protection features, including IP54 protection and Class F insulation, safeguard both equipment and operator during continuous, intensive use.

Ease of Integration and Maintenance

With its floor-mounted, rectangular design (1700 x 700 x 1200 mm), this liquid rotor starter is straightforward to install in a variety of industrial settings. Its improved motor life and smooth starting capability reduce wear, maintenance needs, and energy expenses over time.

FAQs of Liquid Rotor Starters:

Q: How does the Liquid Rotor Starter contribute to smooth motor starting?

A: The Liquid Rotor Starter leverages liquid resistance to gradually increase current, ensuring a smooth and controlled start for heavy-duty motors. This reduces mechanical and electrical stress, ultimately extending the lifespan of your equipment.

Q: What types of applications are ideal for this Liquid Rotor Starter?

A: This product is best suited for heavy-duty industrial applications where large motors require a controlled, efficient startsuch as mining, cement plants, and manufacturing units. Its high protection level and efficiency make it a reliable choice for demanding environments.

Q: When should I consider installing a Liquid Rotor Starter for my motors?

A: Install a Liquid Rotor Starter when you operate high-capacity motors that need frequent starts under heavy loads, or when protecting the motor from electrical surges and excessive wear is a priority.

Q: Where is the best mounting location for this starter unit?

A: Designed for indoor installation, the starter should be floor-mounted in a well-ventilated, dry area, away from direct exposure to water or extreme temperatures, within the recommended operating range of 0C to 40C and up to 90% relative humidity.

Q: What is the process for connecting the Liquid Rotor Starter to a three-phase heavy-duty motor?

A: Connect the input lines to a 415 V three-phase power source, ensuring correct grounding per safety standards. Wire the output terminals to the motor, adjust settings as required, and verify secure connections before initiating the starter sequence.

Q: How does the IP54 rating and Class F insulation benefit users?

A: The IP54 protection ensures resilience against dust and splashing water, enhancing safety and durability. Class F insulation allows the starter to operate efficiently at higher temperatures, protecting against overheating and promoting longer service life.

Q: What are the energy efficiency and protective features of this Liquid Rotor Starter?

A: With an efficiency above 97% and built-in overheating protection, it minimizes energy consumption during operation. The starter also provides a robust shield against power surges and excessive current, helping reduce maintenance and downtime.
